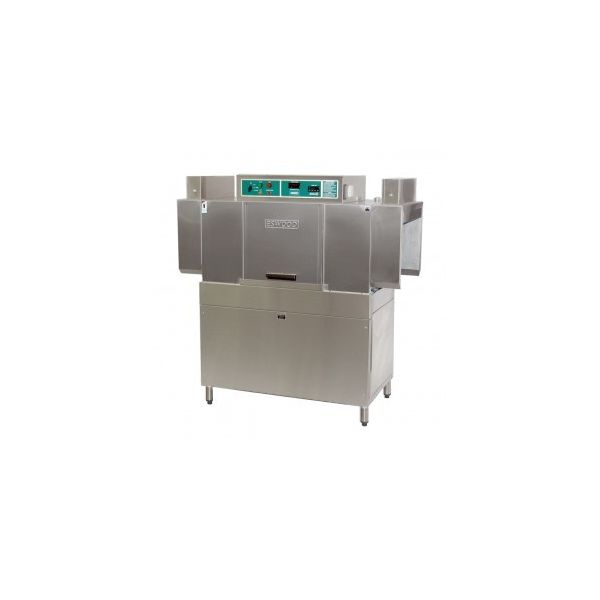

Eswood 100 Rack Per Hour Automatic In-Line Conveyor Dishwasher ES100

HACCP ACCREDITATION CERTIFICATE No PE-388-GE-01

Single speed conveyor 100 racks per hour
Top Mounted Controls and Electrical Control Gear, away from water splash, easy access for Servicing.
Machine operation inter-locked to Rinse Temperature
Automatic fill
Fully panelled front and sides (avoiding water splash to motors etc. when dish wash area is being cleaned)
Door safety switches.
Clutch controlled conveyor (providing protection to drive mechanism if racks jam in machine).
Low water protection (to wash tank elements).
Integral rinse booster heater 12kW.
Wash and rinse elements fitted with individual thermostats.
Dual filter system.
Rinse economiser (pre-set to provide precise volume of rinse water irrespective of fluctuation in water supply pressure)
Water Consumption: 400 Litres per hour (Maximum)
Wash Temperature: 60C to 65C
Rinse Temperature: 82C minimum
Water Input: 65C minimum @ 200-400 kPa
Hot Water Inlet: 1/2” B.S.P. fitting - Drain Outlet: 2 x 2” B.S.P. gravity fed
Net Weight 160kg
All other details in accordance with our published specifications:
Requires 415v/5013 + Neutral electrical supply: 23.3kW
Complete with: -
3 x UK Plate Racks and 1 x BK Cup/Cutlery Racks

Features:

• Includes: 3 plate racks, 1 cup/cutlery rack.
• Extended hoods and vent spigots.
• Rinse booster pump.
• Insulated panels.
• optional 3 phase.
• Angle 90/180 degree entry and exit power curves.
• Wash Temperature: 60-65 degrees celsius.
• Conveyor drive: 180watts (with safety clutch).

Specifications:

• Brand: ESWOOD
• Code: ES100
• Colour: SILVER
• Width 1130mm
• Depth: 730mm
• Height: 1770mm
• Product Origin: AUSTRALIA
• Warranty: 12 months Part and Labour Warranty

Photos are for illustration purposes only and may vary. Description and model number are precise.
