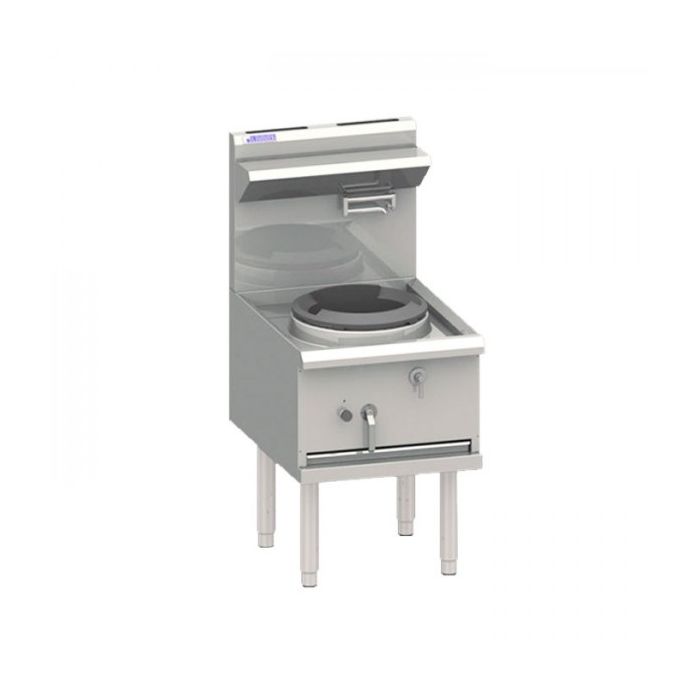

Compact Wok
• 115 mj 24 jet chimney burners with pilot & FFD
• 325mm diameter standard size cast-iron wok ring
• Air gap cooling system
• Quarter turn water control lever
• Folding rear laundry arm with front panel controls
• Front gutter design for easier cleaning
• Internal front heat shield panel
• Supplied with waste strainer
• Zinc-aluminium Alloy burner handles
Overall Construction
• Heavy duty construction
• Full skirt, enamelled cast-iron rings
• 1.5mm 304 stainless steel one-piece pressed deck
• 0.9mm 304 stainless steel condiment shelf
• Splashback 1.2 mm 304 stainless steel
• Front cover and hob 1.2mm 304 stainless steel
• Side panels 0.9mm 304 stainless steel
• Undertrays 0.7mm stainless steel
• Stainless steel removable legs
• 55mm height adjustment range
Dimensions
• 600mm x 800mm x 1300mm H
• Working height 850mm
• Weight 85kg
• Packed dimensions 650mm x 900mm x 1470mm H
• Packed weight 110kg
Connections
• Gas 3/4” BSP male
• Gas 90mm from left, 85mm from rear, 385m to floor
• Supplied with gas regulator (specify Nat or LP on order)
• Water inlet 1/2” copper tube
• Water 560mm from left, 85mm to rear, 385mm to floor
• Drain 1/1/4” BSP male
• Drain 80mm from right, 85mm from rear, 385mm to floor
Cleaning & Servicing
• Easy access to all parts & components from front
Options/Accessories
• Knee lever timer tap
• Replace Chimney burners with Duckbill burners
• 250mm and 500mm wide clip on shelves (front)
• Joining caps & strips
• RH and LH side shields
• Rear castors
• Extended warranty
Barcode | WX-1C LPG |
---|---|
Show in Catalog? | Yes |
Warranty Duration | 15 Months On Site Warranty. Parts & Labour covered |
