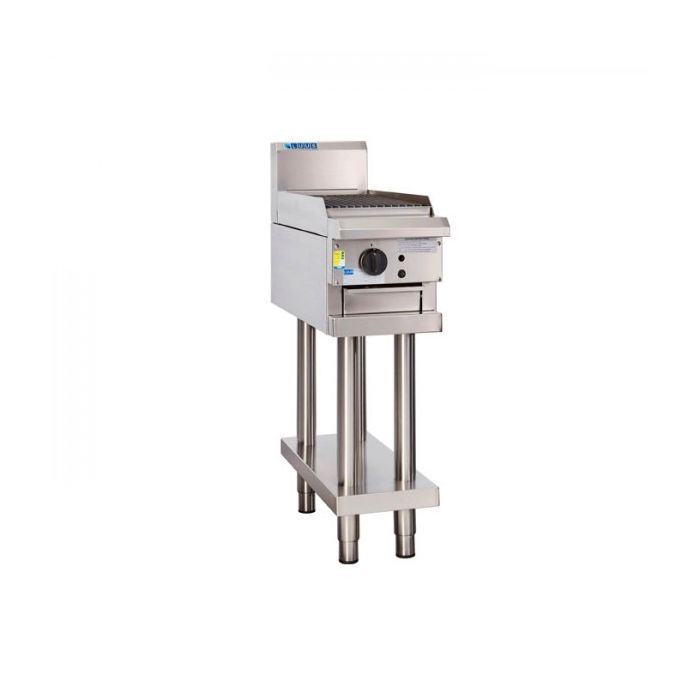

LUUS Professional 300mm Chargrill CS-3C NG

Chargrill/Barbecue

• 33 mj S/S tube burners with pilot, FFD and piezo ignition

• Variable flame control valve with low flame setting

• Cast-iron heat distributing hood as standard

• Optional ceramic rocks for even heat and smokiness

• Optional cast iron ceramic rock tray

• Heavy duty cast iron ‘diamond’ grates 147mm x 540mm

• CS-3C bbq: 280mm x 520mm; 0.15m2 cooking area

• 2mm 304 stainless steel splash guards

• Chargrill undertray 0.9mm stainless steel

Overall Construction

• Heavy duty construction

• Welded 1.2mm 304 stainless steel front hob

• Front and side panels 0.9mm 304 stainless steel

• Splashback 1.2 mm 304 stainless steel

• Stainless steel legs with 55mm height adjustment range

Dimensions

• 300mm x 800mm x 1100mm H

• 300mm x 800mm x 560mm H (benchtop)

• Working height 900mm

• Weight 50kg

• Packed dimensions 640mm x 860mm x 1260mm H

• Packed weight 70kg

Connections

• Gas 3/4” BSP male

• 180mm from right, 50mm from rear, 600mm from floor

• Benchtop model gas connection: 60mm from bottom

• Supplied with gas regulator (specify Nat or LP on order)

Cleaning & Servicing

• Easy access to all parts & components from front

Options/Accessories

• Rear castors

• Joining caps

• Scallop low-contact grates

• J-shaped reversible grates

• RH and LH side shields

• Ceramic rocks (specify when ordering)

• Benchtop mount (specify when ordering)

• Extended warranty
