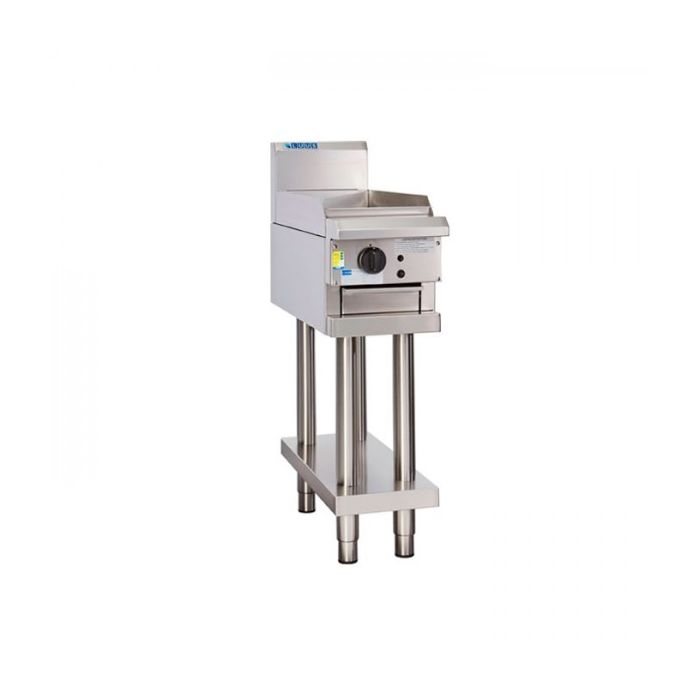

LUUS Professional 300mm Griddle CS-3P NG

Griddle/Hotplate

• 18 mj burners with pilot, FFD and piezo ignition

• Variable flame control valve with low flame setting

• 16mm thick mild steel griddle plate

• Top weld sealed hotplate sections

• CS-3P plate: 290mm x 540mm; 0.16m2 cooking area

• 2mm 304 stainless steel splash guards

• Griddle oil tray 1.2mm stainless steel

Overall Construction

• Heavy duty construction

• Welded 1.2mm 304 stainless steel front hob

• Front and side panels 0.9mm 304 stainless steel

• Splashback 1.2 mm 304 stainless steel

• Stainless steel legs with 55mm height adjustment range

Dimensions

• 300mm x 800mm x 1100mm H

• 300mm x 800mm x 560mm H (benchtop)

• Working height 900mm

• Weight 53kg

• Packed dimensions 640mm x 860mm x 1260mm H

• Packed weight 73kg

Connections

• Gas 3/4” BSP male

• 180mm from right, 50mm from rear, 600mm from floor

• Benchtop model gas connection: 60mm from bottom

• Supplied with gas regulator (specify Nat or LP on order)

Cleaning & Servicing

• Easy access to all parts & components from front

Options/Accessories

• Rear castors

• Joining caps

• Ribbed or chrome finish on hotplates

• RH and LH side shields

• Benchtop mount (specify when ordering)

• Extended warranty
