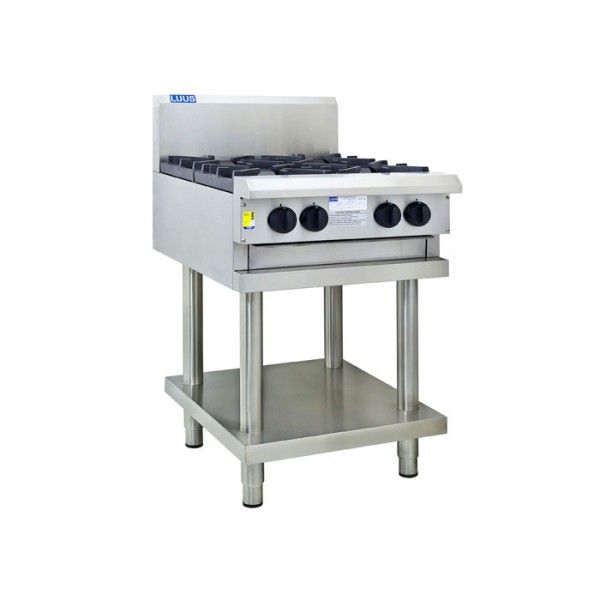

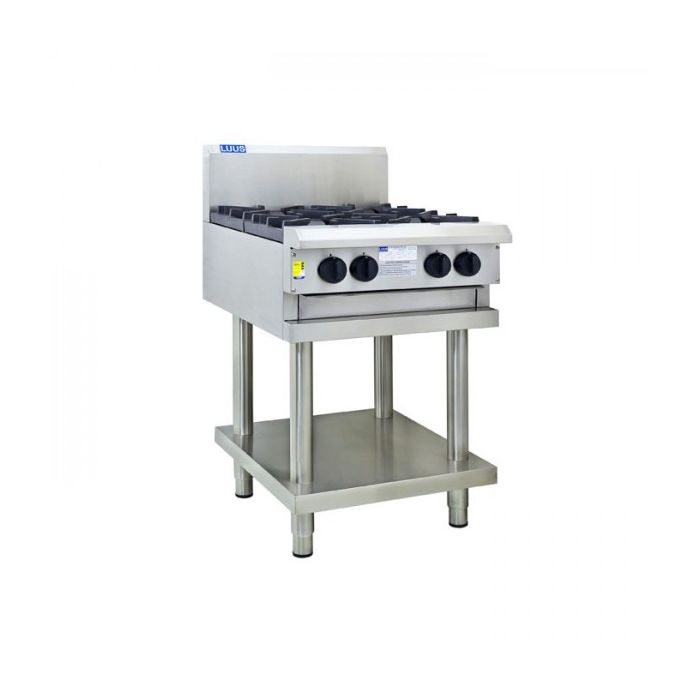

LUUS Professional 4 Burner Cooktop CS-4B NG

Open Burners

• Nickel plated cast iron 28 mj dual-flame ring burners

• Flame failure device standard (pilots optional extra)

• Variable flame control valve with low flame setting

• Heavy duty cast iron trivets

• Pressed 0.7mm 304 stainless steel spillage bowls

Griddle/Hotplate

• 18 mj burners with pilot, FFD and piezo ignition

• Variable flame control valve with low flame setting

• 16mm thick mild steel griddle plate

• Top weld sealed hotplate sections

• CS-2B3P plate: 290mm x 540mm; 0.16m2 cooking area

• 2mm 304 stainless steel splash guards

Chargrill/Barbecue

• 33 mj burners with pilot, FFD and piezo ignition

• Variable flame control valve with low flame setting

• Two piece burner with cast-iron heat distributing hood

• Optional ceramic rocks for even heat and smokiness

• Optional cast iron ceramic rock tray

• CS-2B3C bbq: 280mm x 520mm; 0.15m2 cooking area

• 2mm 304 stainless steel splash guards

Overall Construction

• Heavy duty construction

• Welded 1.2mm 304 stainless steel front hob

• Front and side panels 0.9mm 304 stainless steel

• Splashback 1.2 mm 304 stainless steel

• Stainless steel legs with 55mm height adjustment range

• Secondary catchment tray 0.9mm stainless steel

Dimensions

• 600mm x 800mm x 1100mm H

• 600mm x 800mm x 560mm H (benchtop)

• Working height 900mm

• Weight 85kg

• Packed dimensions 640mm x 860mm x 1260mm H

• Packed weight 105kg

Connections

• Gas 3/4” BSP male

• 180mm from right, 50mm from rear, 600mm from floor

• Benchtop model gas connection: 60mm from bottom

• Supplied with gas regulator (specify Nat or LP on order)

Cleaning & Servicing

• Removable burner hoods and spillage bowls

• Secondary undertray to catch any additonal waste

• Easy access to all parts & components from front

Options/Accessories

• Rear castors

• Pilots to open burners

• 300mm drop on plate (6mm mild steel) for open burners

• Ribbed or chrome finish on hotplates

• RH and LH side shields

• Ceramic rocks (specify when ordering)

• Benchtop mount (specify when ordering)

• Extended warranty
