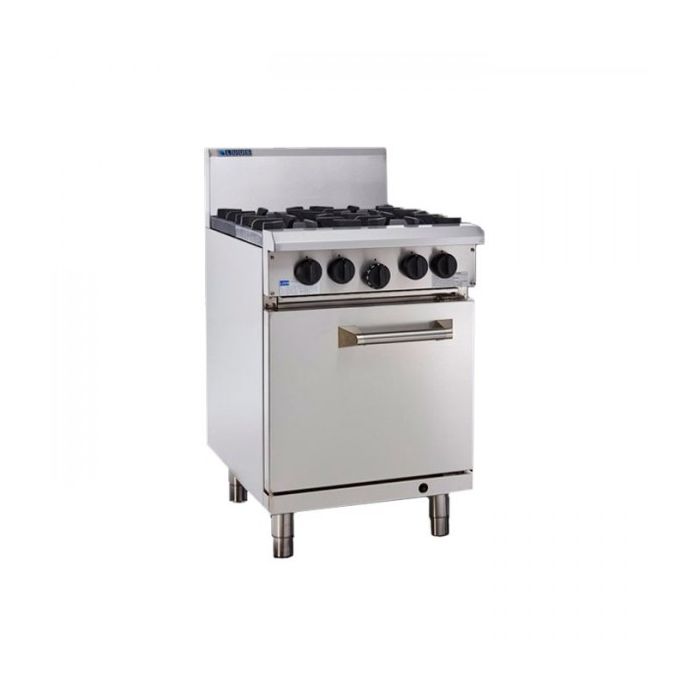

LUUS Professional 4 Burner & Oven RS-4B LPG

Open Burners

• Nickel plated cast iron 28 mj dual-flame ring burners

• Flame failure device standard (pilots optional extra)

• Variable flame control valve with low flame setting

• Heavy duty cast iron trivets

• Pressed 0.7mm 304 stainless steel spillage bowls

Oven

• 29mj oven burner with mild steel sole plate

• Oven flame failure, pilot & piezo ignition as standard

• 100-340° C thermostat control

• Internal cooking space: 440mm x 550mm x 300mm H

• Vitreous enamel 1.5mm internal oven door/wall lining

• Fibertex Rockwool insulation in oven walls & doors

• French (swing) doors for easy oven access

• 304 stainless steel ‘cool touch’ door handles

• Suits 1/1 Gastronorm size trays

• Chrome oven rack supports with 4 positions

• Supplied with 2 oven racks

Griddle/Hotplate

• 18 mj burners with pilot, FFD and piezo ignition

• 16mm thick mild steel griddle plate

• RS-6P plate: 590mm x 540mm; 0.32m2 cooking area

• RS-2B3P plate: 290mm x 540mm; 0.16m2 cooking area

• 2mm 304 stainless steel splash guards

Chargrill/Barbecue

• 33 mj burners with pilot, FFD and piezo ignition

• Cast-iron radiant hood system (ceramic rocks optional)

• RS-2B3C bbq: 280mm x 520mm; 1456cm2 cooking area

Overall Construction

• Heavy duty construction

• Welded 1.2mm 304 stainless steel front hob

• Front, side & door panels 0.9mm 304 stainless steel

• Splashback 1.2 mm 304 stainless steel

• Stainless steel feet with 55mm height adjustment range

• Secondary catchment tray 0.9mm stainless steel

Dimensions

• 600mm x 800mm x 1100mm H

• Working height 900mm

• Weight 130kg

• Packed dimensions 640mm x 860mm x 1260mm H

• Packed weight 150kg

Connections

• Gas 3/4” BSP male

• 180mm from right, 50mm from rear, 140mm from floor

• Supplied with gas regulator (specify Nat or LP on order)

Cleaning & Servicing

• Removable burners, hoods and spillage bowls

• Secondary undertray to catch any additonal waste

• Oven racks, supports and sole plate easy to remove

• Easy access to all parts & components from front

Options/Accessories

• Rear castors

• Plots to open burners

• Ribbed or chrome finish on hotplates

• RH and LH side shields

• Extended warranty
