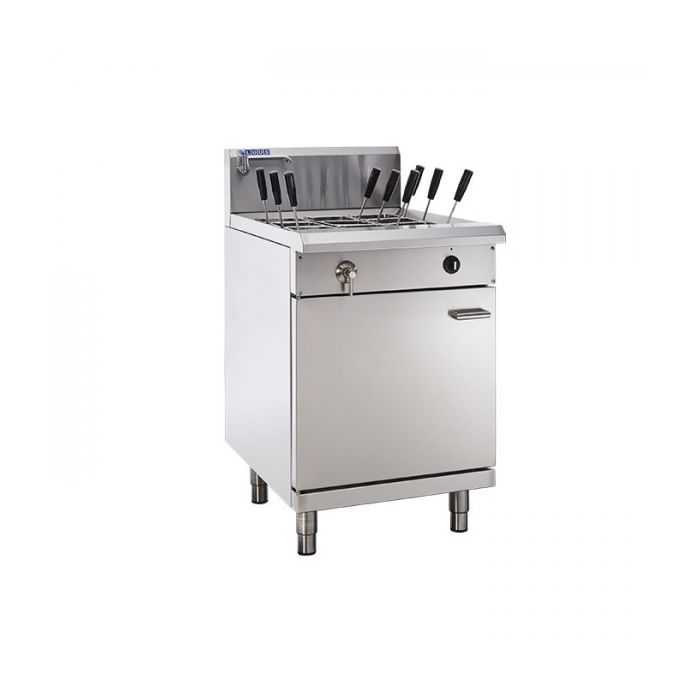

LUUS Professional 9 Basket Pasta Cooker PC-60 NG

Pasta Cooker

• 78 mj jet burner with pilot, FFD and piezo ignition

• Adjustable thermostat accurately controls water temp

• Water purifying overflow system to remove excess starch

• High temperature cut-out safety mechanism

• Marine grade 1.5mm 316 stainless steel tank

• 50 litre tank capacity

• Tank filter insert 0.9mm 304 stainless steel

• Drain back basket stand 1.2mm 304 stainless steel

• Rear laundry arm with controls located on front panel

• Includes 9 baskets 0.7mm 304 perforated stainless steel

• Safety release tank drainage valve at bottom of unit

Overall Construction

• Heavy duty construction

• Constructed 0.9mm 304 stainless steel door

• Fiberfrax Durablanket insulation on both sides of tank

• Welded 1.2mm 304 stainless steel front hob

• Front and side panels 0.9mm 304 stainless steel

• Splashback 1.2 mm 304 stainless steel

• Includes rear castors and stainless steel legs (front)

Dimensions

• 600mm x 800mm x 1100mm H

• Working height 900mm

• Weight 84kg

• Packed dimensions 640mm x 860mm x 1260mm H

• Packed weight 104kg

Connections

• Gas 3/4” BSP male

• Gas 180mm from right, 70mm from rear, 150mm from floor

• Supplied with gas regulator (specify Nat or LP on order)

• Water inlet 1/2” copper tube

• Water 60mm from left, 70 mm from rear, 80mm from floor

• Drain 1” BSP male

• Drain 300mm from left, 210mm from front, 220mm floor

Cleaning & Servicing

• Easy access to all parts & components from front

• Removable baskets and inserts

Options/Accessories

• Additional pasta baskets

• Joining caps

• RH and LH side shields

• Extended warranty
